LEVEL SENSORS

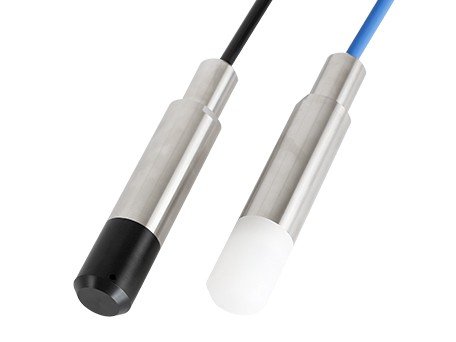

Submersible Diesel/Gasoline Level Transmitter HPT604-BL


This submersible level sensor adopts SUS304 stainless steel housing and a filter cap(two kinds of filter caps optional), and can be put in water/oil/fuel/chemical tanks or reservoir directly for liquid level measurement. It features high corrosion-resistant and can be used in explosive environment.

Advantages

  • Hydrostatic sensor for measuring level of small diesel tank
  • High accuracy up to 0.25%F.S
  • Adopting diffusion silicon sensor
  • High quality PUR/FEP cable with strong water and fuel resistance
  • Digital circuit board of lightning and surge protection for use in harsh environment

Applications

  • Water tank level measurement and control
  • Fuel tank level measurement(diesel, gasoline, kerosene...)
  • Refinery
  • Bio-Fuels
  • Pumping stations

KEY FEATURES

HPT604-BL
Pressure Range: 0-0.1Bar…..2 bar / 0-1m…20m fuel level Optional 80m max for SDI-12 signal
Accuracy: Better than ±0.25%F.S @25 degree C
Long Stability: ≤ ±0.1% of span/year
Working Temperature: -30-80℃(non-corrosive medium)
Temperature Compensation: -40℃~80℃
Medium compatible: Compatible with 304 Stainless Steel
Output signal: 4-20mA,1-5V; 0-5V,0-10 V,Dual 4-20mA,SDI-12,RS485 Modbus...
Power Supply: 7-30Vdc,8-30Vdc,13-30Vdc,12-30Vdc,12Vdc,3.5-36Vdc...
Electronic connection: Fixed cable and water proof IP68
